Mechanical Seal M3n Z2 Rotary Ring Burgman Mechanical Seal Single Spring Seal
Mechanical Seal M3n Z2 Rotary Ring Burgman Mechanical Seal Single Spring Seal Mechanical Seal M3n Z2 Rotary Ring Burgman Mechanical Seal Single Spring Seal Mechanical Seal M3n Z2 Rotary Ring Burgman Mechanical Seal Single Spring Seal Mechanical Seal M3n Z2 Rotary Ring Burgman Mechanical Seal Single Spring Seal Mechanical Seal M3n Z2 Rotary Ring Burgman Mechanical Seal Single Spring Seal
接触

Mechanical Seal M3n Z2 Rotary Ring Burgman Mechanical Seal Single Spring Seal

最小注文数量 : 5pc 価格 : Negotiated
パッケージの詳細 : 要件としてのボックス 受渡し時間 : 20〜30日
支払条件 : T/T、Western Union、L/C 供給の能力 : 100000pc/月
起源の場所: 中国製 ブランド名: JR
証明: ISO9001 モデル番号: 120

詳細情報
材料: SIC SIC FKM車CER NBR 関数: オイルポンプの場合、ウォーターポンプ
トランスポートパッケージ: 箱 HSコード: 848420090
仕様: Roten 2のシール 証明書: ISO9001
タイプ: 120のため 標準: 標準
スタイル: 機械シール 製品名: 機械シール120のBurgmann Bt RnのシールのRoten 2のシールのFlowserve 42のシール

製品の説明

Mechanical Seal Single Spring Seal 120 Burgmann Bt-Rn Seals Roten 2 Seal Flowserve 42 Seal



Operational Conditions:

  1. 120 can use different brand pump
  2. Temperature: -40ºC to +200ºC
  3. Pressure: ≤1MPa
  4. Speed: ≤15m/s

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids


Performance Capabilities

120 mechanical seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
14mm to 100mm,
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Pa




  • 1. Features of structure:
  • Burgmann Bt-Rn Seals Roten 2 Seal Flowserve 42 Seal
  • 2.Our seals can replace the original seals.
  • 3.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.
  • 4.Customized products and OEM is welcomed
  • 5. 12 YEARS EXPERIENCE ,We provide Factory Price,High Quality ,Fast Delivery and Best Sevice.

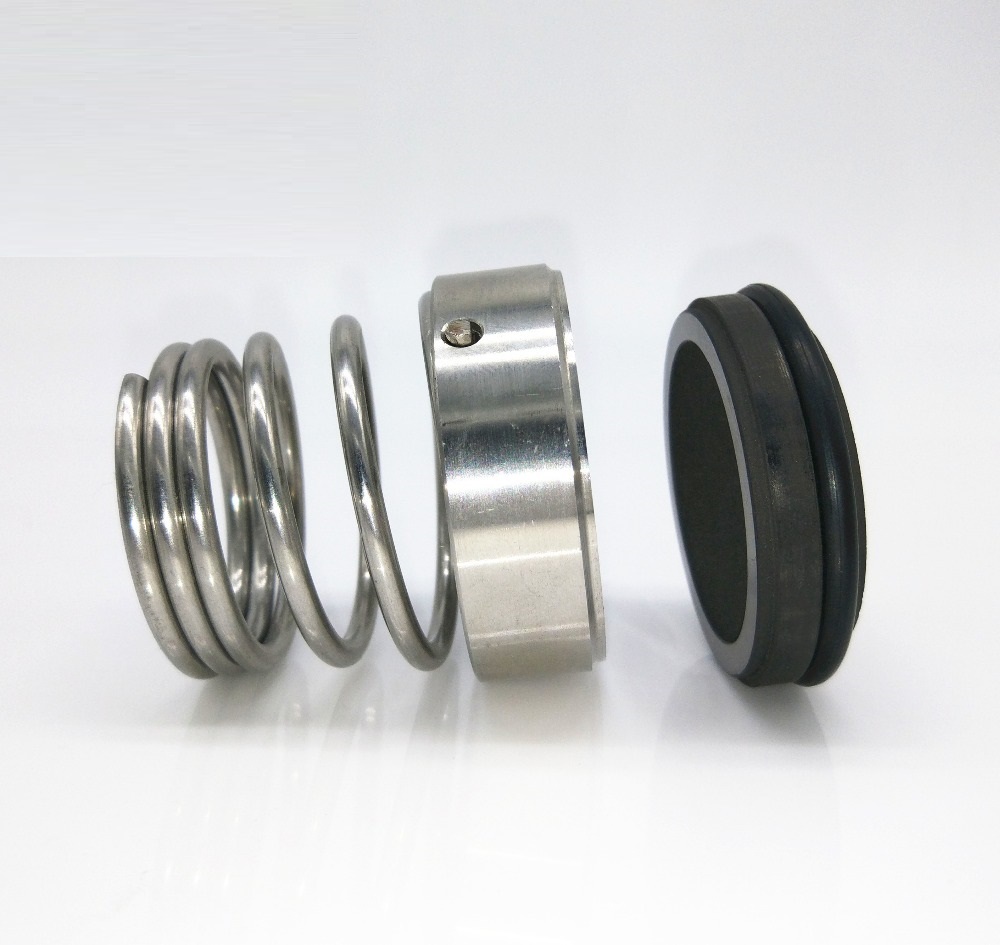

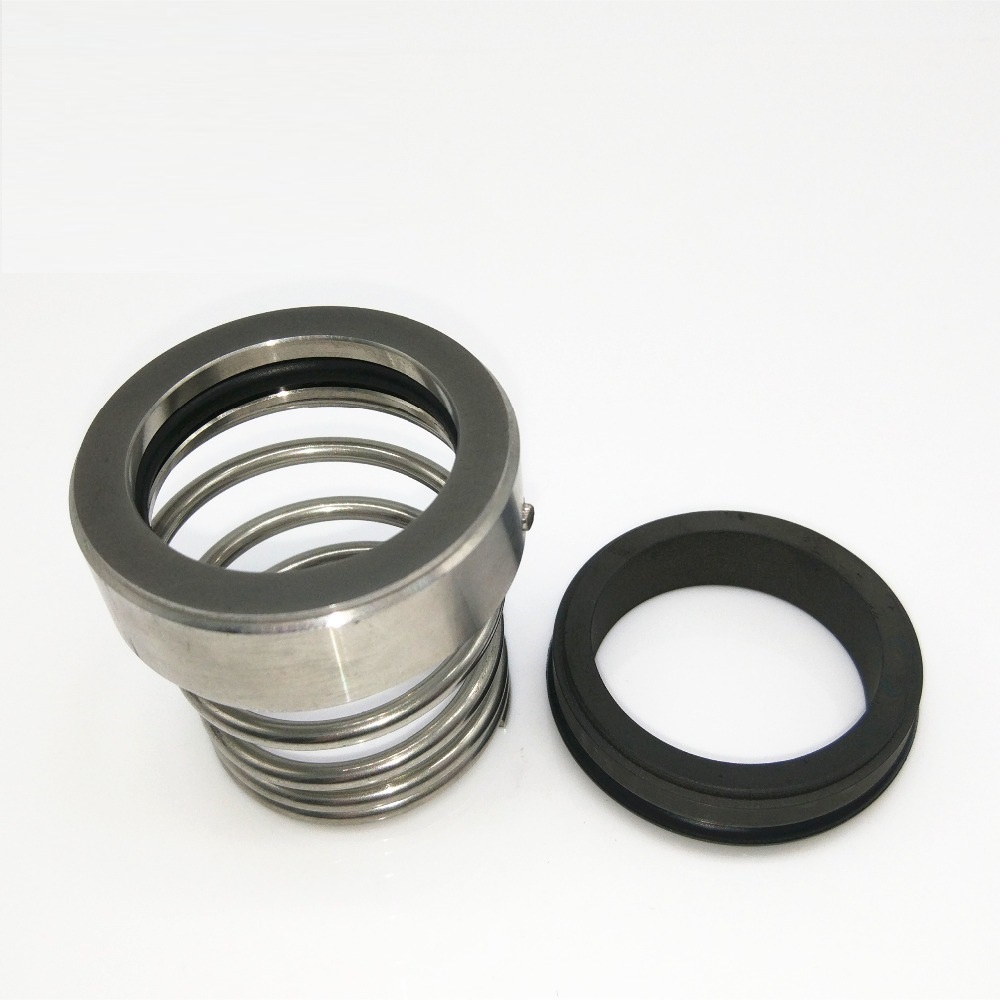

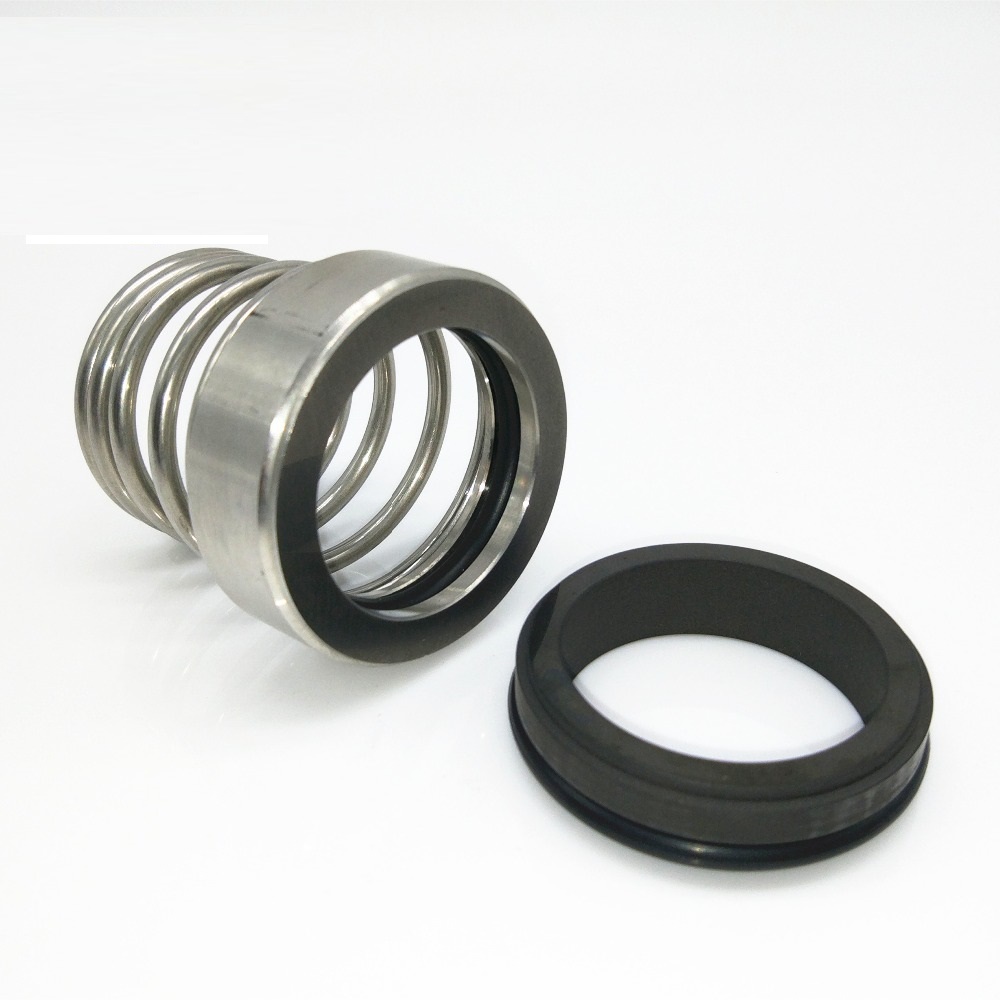

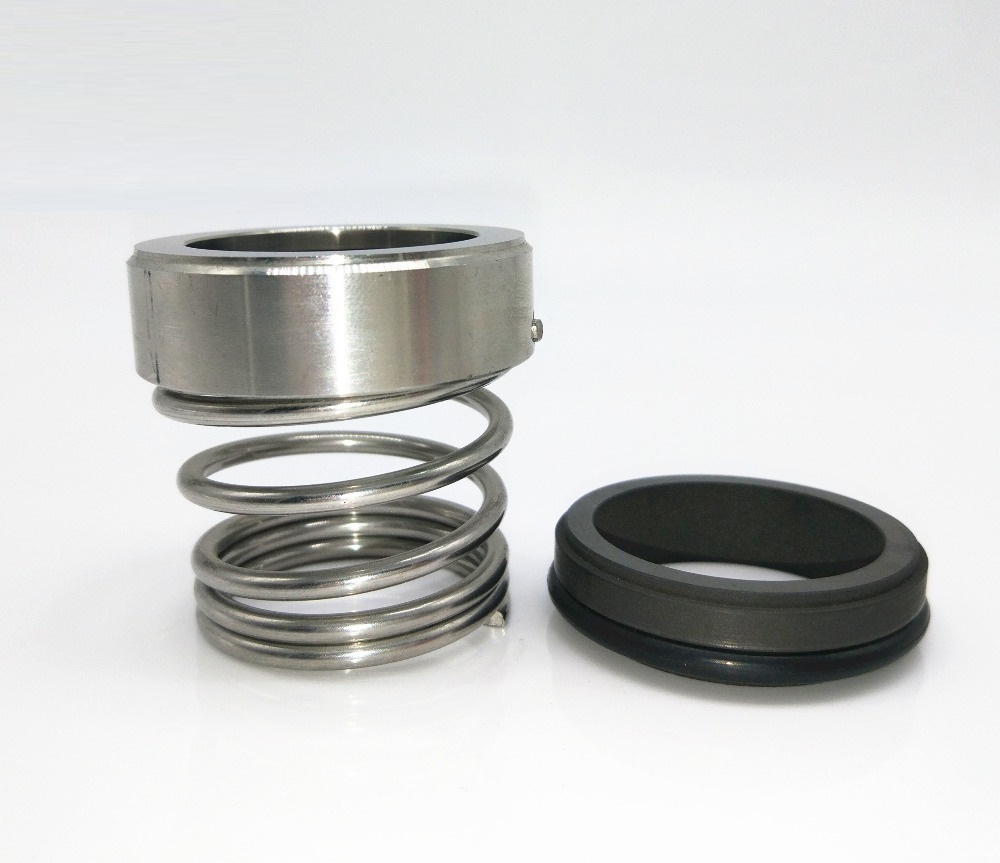

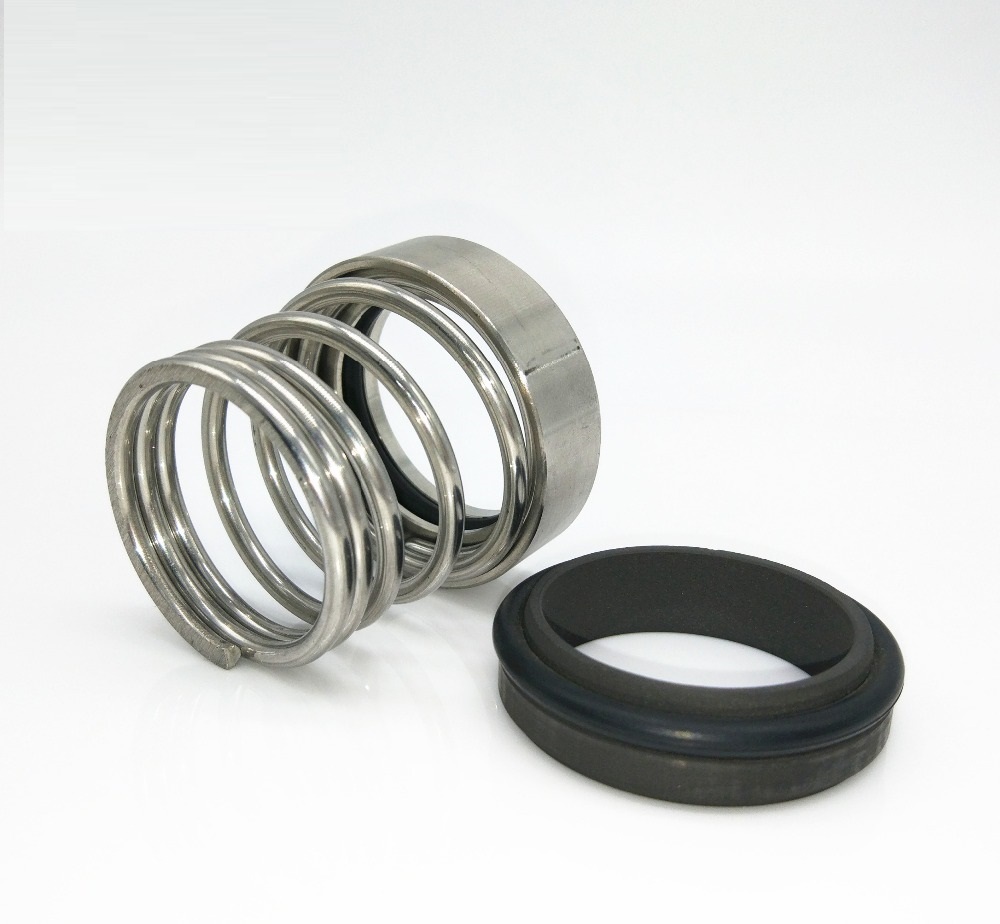

Mechanical Seal M3n Z2 Rotary Ring Burgman Mechanical Seal Single Spring Seal 0

Mechanical Seal M3n Z2 Rotary Ring Burgman Mechanical Seal Single Spring Seal 1Mechanical Seal M3n Z2 Rotary Ring Burgman Mechanical Seal Single Spring Seal 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
