22451-1 Mechanical Seal For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM

最小注文数量 : 10pc 価格 : Negotiated
パッケージの詳細 : 要件としてのボックス 受渡し時間 : 20〜30日
支払条件 : T/T、Western Union、L/C 供給の能力 : 10000pc/month
起源の場所: 中国製 ブランド名: JR
証明: ISO9001 モデル番号: 代表団ポンプ シール2.5

詳細情報

材料: sic sic fkm 関数: オイルポンプの場合、ウォーターポンプ
トランスポートパッケージ: HSコード: 848420090
証明書: ISO9001 タイプ: 代表団の機械シール
標準または非標準: 標準 サイズ: 2.5インチ
仕様: 代表団ポンプ機械シール 製品名: 機械シールの代表団ポンプ2.5

製品の説明

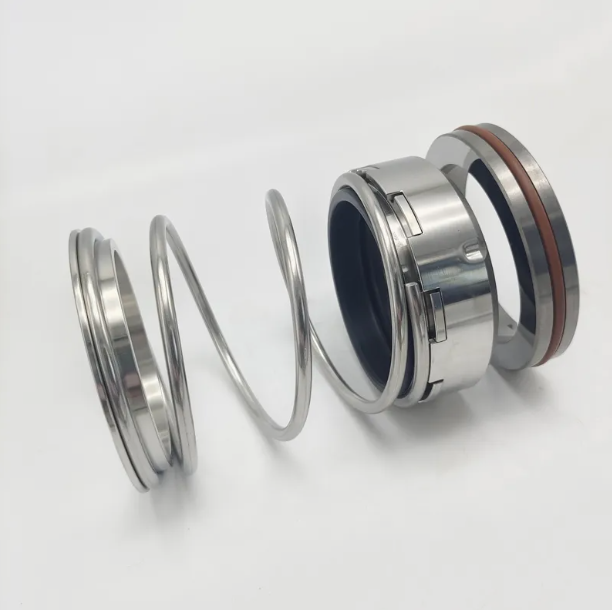

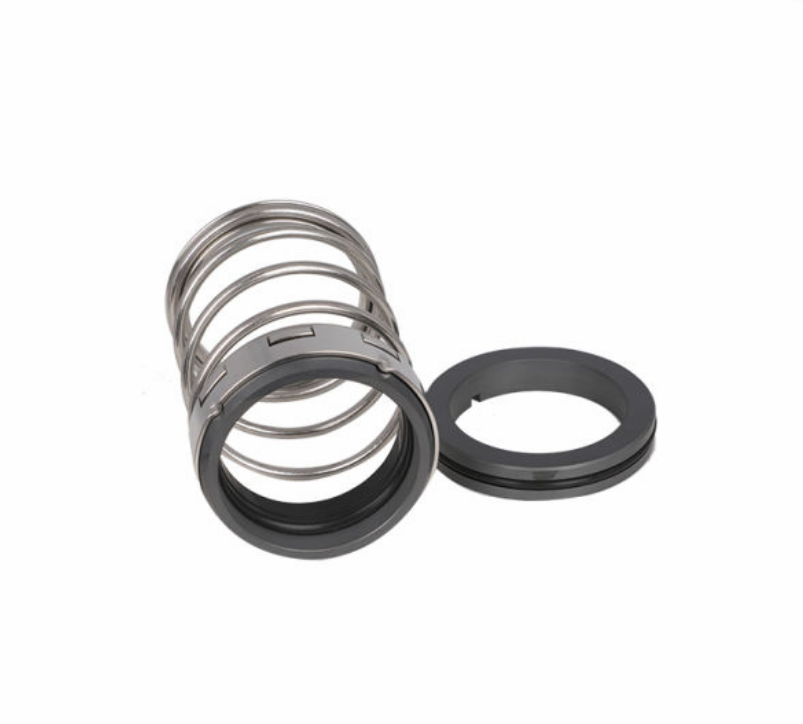

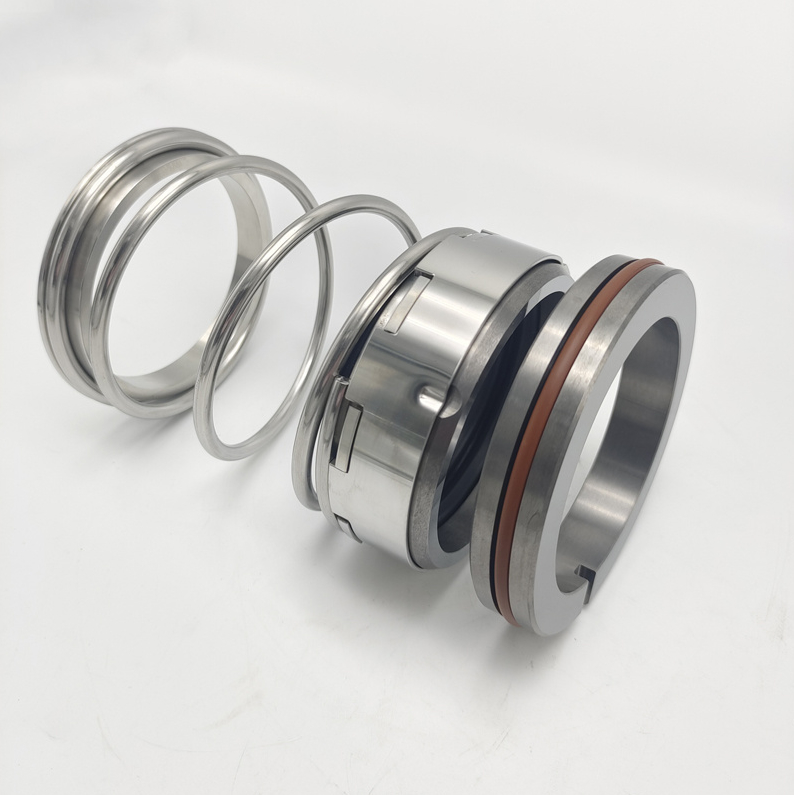

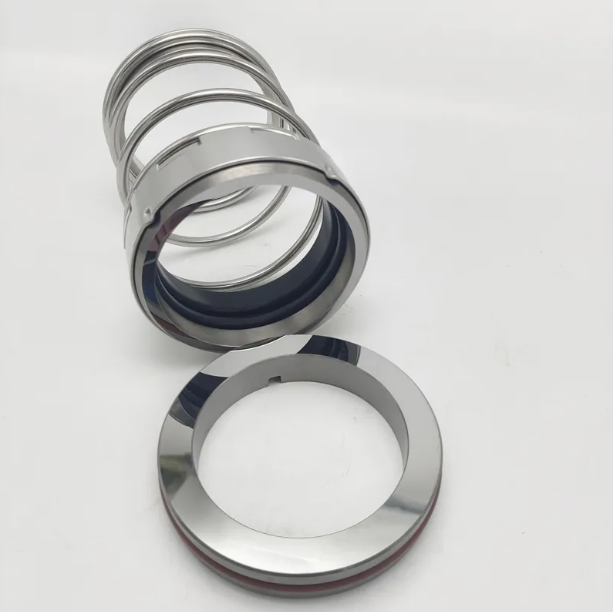

Mission Horizontal Centrifugal Pump Mechanical Seal 2.5inch TC TC FKM​



Operational Conditions:

  1. Size: 2.5inch
  2. Temperature:-20 °C ...+220 °C
  3. Pressure: 16 bar
  4. Sliding velocity: 20 m/s
  5. Axial movement: ± 0.5 mm

Materials:

  1. Rotary Face: Carbon/SIC/TC
  2. Stat Ring: SIC/TC
  3. Seat Type: Standard AS-S16

Performance Capabilities

Temperature
-20℃ to 200℃, dependent on the elastomer
Pressure
Up to 21 bar
Speed
Up to 23 m/s
End play/axial float allowance
±0.1mm
Size
2.5inch
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

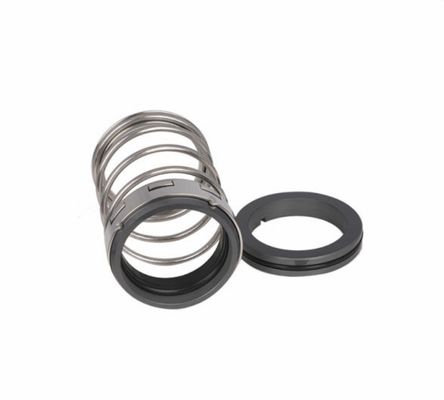

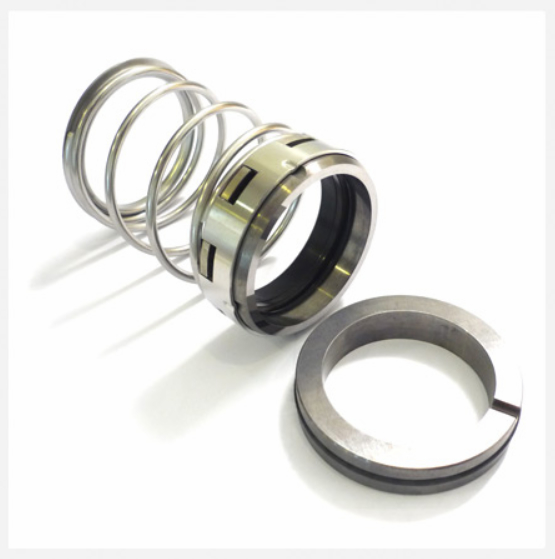

22451-1 Mechanical  Seal  For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM 0

22451-1 Mechanical  Seal  For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM 1

22451-1 Mechanical  Seal  For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM 222451-1 Mechanical  Seal  For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM 322451-1 Mechanical  Seal  For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM 4

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
